Build a Fast GeoIP API in Rust with ntex

Published Mar 28, 20265 min read
webdevprogrammingrusttutorial
← Back to listView on dev.to

This article shows a step by step approach to building a small, high performance GeoIP HTTP API in Rust using ntex.

In less than 120 lines of code.

Why ntex?

  • Runtime choice: ntex separates framework from the async runtime, letting you select implementations that best fit your latency and platform requirements.
  • Ecosystem: ntex has runtime-consistent crates such as ntex-redis, ntex-grpc, ntex-mqtt, and ntex-amqp so you can add integrations that match the same runtime model.
  • Low overhead: ntex aims for high-throughput servers and gives control over worker count and threading.

Prerequisites

  • Rust toolchain (stable). Install from https://rustup.rs if needed.
  • cargo available on PATH.
  • MaxMind mmdb files placed under ./mmdb available here

Install dependencies

Run these commands to add the dependencies used in this example. Each is chosen to fulfill a specific role:

  • ntex - the web framework.
  • maxminddb - reading MaxMind DB formats.
  • memmap2 - memory map mmdb files for fast, zero-copy reads.
  • lru - in process LRU cache for repeated lookups.
  • anyhow - ergonomic error handling for simple apps.
  • serde, serde_json - JSON (de)serialization for responses.
  • num_cpus - detect worker count.
cargo add ntex
cargo add maxminddb --features mmap
cargo add memmap2
cargo add lru
cargo add anyhow
cargo add serde --features derive
cargo add serde_json
cargo add num_cpus

Cargo.toml:

[package]
name = "geo-api"
version = "0.1.0"
edition = "2024"

[dependencies]
anyhow = "1.0.102"
lru = "0.16.3"
maxminddb = { version = "0.27.3", features = ["mmap"] }
memmap2 = "0.9.10"
ntex = { version = "3.7.0", features = ["tokio"] }
num_cpus = "1.17.0"
serde = { version = "1.0.228", features = ["derive"] }
serde_json = "1.0.149"

Create a basic endpoint

Let's start with a basic endpoint for our api:

use ntex::web;

#[derive(serde::Deserialize)]
struct GeoIpQuery {
  ip: std::net::IpAddr,
}

#[web::get("/geoip")]
async fn geoip_handler(
  query: web::types::Query<GeoIpQuery>,
) -> web::HttpResponse {
  web::HttpResponse::Ok().json(&serde_json::json!({
    "message":"ok"
  }))
}

#[ntex::main]
async fn main() -> anyhow::Result<()> {
  let srv =
    web::HttpServer::new(async move || web::App::new().service(geoip_handler))
      .workers(num_cpus::get());
  srv.bind("0.0.0.0:8585")?.run().await?;
  Ok(())
}

Test the endpoint:

cargo run
curl 'http://localhost:8585/geoip?ip=8.8.8.8' | jq

Should output:

{
  "message": "ok"
}

Implement the logic

We will use a shared AppState struct to open and memory map the mmdb files once at startup (cheap, concurrent reads). To avoid repeated mmdb work and reduce contention, the example uses a sharded LRU cache.

The following implementation has been optimized for minimal line count at the expense of some readability and error handling.

use std::hash::{Hash, Hasher};

use lru::LruCache;
use maxminddb::Reader;
use memmap2::Mmap;
use ntex::web;

const SHARD_SIZE: usize = 16;
const CACHE_SIZE: usize = 1024;

#[derive(serde::Deserialize)]
struct GeoIpQuery {
  ip: std::net::IpAddr,
}

#[derive(Clone, serde::Serialize)]
struct GeoIpResponse {
  country: Option<String>,
  city: Option<String>,
  asn: Option<String>,
}

struct CacheShard(std::sync::Mutex<LruCache<std::net::IpAddr, GeoIpResponse>>);

impl CacheShard {
  fn new() -> Self {
    let cache_size = std::num::NonZeroUsize::new(CACHE_SIZE).unwrap();
    Self(std::sync::Mutex::new(LruCache::new(cache_size)))
  }
  fn get(&self, ip: &std::net::IpAddr) -> Option<GeoIpResponse> {
    self.0.lock().ok()?.get(ip).cloned()
  }
  fn set(&self, ip: std::net::IpAddr, response: GeoIpResponse) {
    if let Ok(mut cache) = self.0.lock() {
      cache.put(ip, response);
    }
  }
}

struct AppInner(Reader<Mmap>, Reader<Mmap>, Vec<CacheShard>);

#[derive(Clone)]
struct AppState(std::sync::Arc<AppInner>);

impl AppState {
  fn open_mmap(path: &str) -> anyhow::Result<Reader<Mmap>> {
    Ok(Reader::from_source(unsafe {
      Mmap::map(&std::fs::File::open(path)?)?
    })?)
  }
  fn new() -> anyhow::Result<Self> {
    Ok(Self(std::sync::Arc::new(AppInner(
      Self::open_mmap("./mmdb/GeoLite2-City.mmdb")?,
      Self::open_mmap("./mmdb/GeoLite2-ASN.mmdb")?,
      (0..SHARD_SIZE).map(|_| CacheShard::new()).collect(),
    ))))
  }
  fn shard(&self, ip: &std::net::IpAddr) -> &CacheShard {
    let mut hasher = std::collections::hash_map::DefaultHasher::new();
    ip.hash(&mut hasher);
    &self.0.2[(hasher.finish() as usize) % SHARD_SIZE]
  }
  fn lookup(&self, ip: &std::net::IpAddr) -> anyhow::Result<GeoIpResponse> {
    let shard = self.shard(ip);
    if let Some(v) = shard.get(ip) {
      return Ok(v.to_owned());
    }
    let (country, city) = self
      .0
      .0
      .lookup(*ip)?
      .decode::<maxminddb::geoip2::City>()?
      .map(|c| {
        (
          c.country.iso_code.map(|s| s.to_owned()),
          c.city.names.english.map(|s| s.to_owned()),
        )
      })
      .unwrap_or((None, None));
    let asn = self
      .0
      .1
      .lookup(*ip)?
      .decode::<maxminddb::geoip2::Asn>()?
      .and_then(|a| a.autonomous_system_organization.map(|s| s.to_owned()));
    let result = GeoIpResponse { country, city, asn };
    shard.set(*ip, result.to_owned());
    Ok(result)
  }
}

#[web::get("/geoip")]
pub async fn geoip_handler(
  app_state: web::types::State<AppState>,
  query: web::types::Query<GeoIpQuery>,
) -> web::HttpResponse {
  match app_state.lookup(&query.ip) {
    Err(_) => web::HttpResponse::InternalServerError().finish(),
    Ok(geoip) => web::HttpResponse::Ok().json(&geoip),
  }
}

#[ntex::main]
async fn main() -> anyhow::Result<()> {
  let app_state = AppState::new()?;
  let srv = web::HttpServer::new(async move || {
    web::App::new()
      .state(app_state.clone())
      .service(geoip_handler)
  })
  .workers(num_cpus::get());
  srv.bind("0.0.0.0:8585")?.run().await?;
  Ok(())
}

What is an LRU cache and why use it?

  • LRU (least-recently-used) keeps the most recently accessed items and evicts the least recently accessed when full. For GeoIP lookups many requests repeat the same IPs, so an LRU gives a high hit rate and avoids repeated, relatively expensive mmdb decodes.

Why shard the cache?

  • Sharding splits the cache into multiple independent smaller caches (each with its own mutex). A request hashes the IP to pick a shard. This reduces lock contention under concurrent requests because only the shard for that IP is locked, improving throughput. Tune SHARD_SIZE and CACHE_SIZE to trade memory for lower contention.

Why use Arc for AppState?

  • AppState holds shared, read mostly resources (the mmap'd readers and the shard vector). Wrapping it in Arc gives cheap, thread safe shared ownership so each worker/handler can clone a reference to the same state without copying the underlying data. This keeps startup work minimal and avoids unnecessary cloning of large resources.

Test the service

Build and run locally:

cargo run

Try the endpoint:

curl 'http://127.0.0.1:8585/geoip?ip=8.8.8.8' | jq

Should return:

{
  "country": "US",
  "city": null,
  "asn": "Google LLC"
}

Optimize for speed

By adding these lines to your Cargo.toml you can optimize the binary for maximum speed

[profile.release]
opt-level = 3
lto = "fat"
panic = "abort"
codegen-units = 1

Benchmark the endpoint

For fun mostly I will download a random list of ips and benchmark the endpoint using vegeta

I am testing this on localhost on an Intel i9-9900K CPU. At high request rates, my CPU is mostly the bottleneck and the benchmark doesn't really reflect real world traffic.

Assuming you have a file with ip addresses on each line you can run:

cat ips.txt | shuf \
  | awk '{print "GET http://127.0.0.1:8585/geoip?ip=" $1}' \
  | vegeta attack -rate=50000 -duration=10s \
  | vegeta report

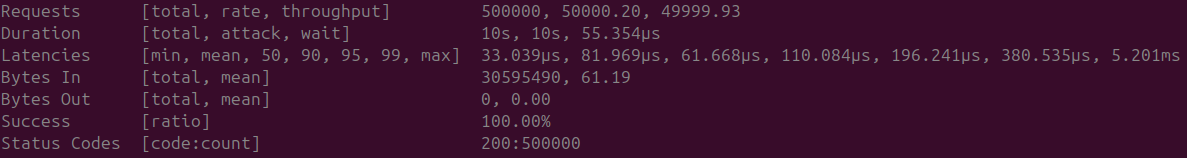

The result I have:

50krps

Which is pretty decent, I believe. To push the fun further, let's run it at 100k RPS

cat ips.txt | shuf \
  | awk '{print "GET http://127.0.0.1:8585/geoip?ip=" $1}' \
  | vegeta attack -rate=100000 -duration=10s \
  | vegeta report

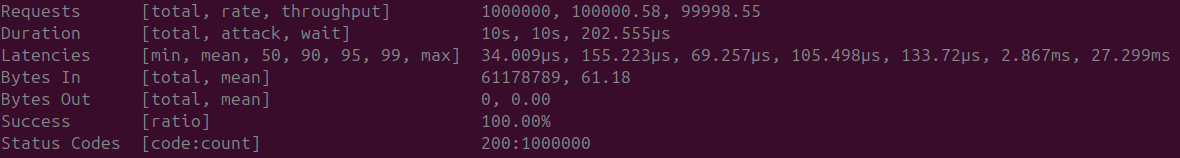

My result:

100krps

Again, this is not a real world benchmark, but it shows the GeoIP API is robust and fast.

Conclusion

Rust has a great ecosystem of crates that lets you write fast and robust services in a few lines of code!

You can see the source code on github.
